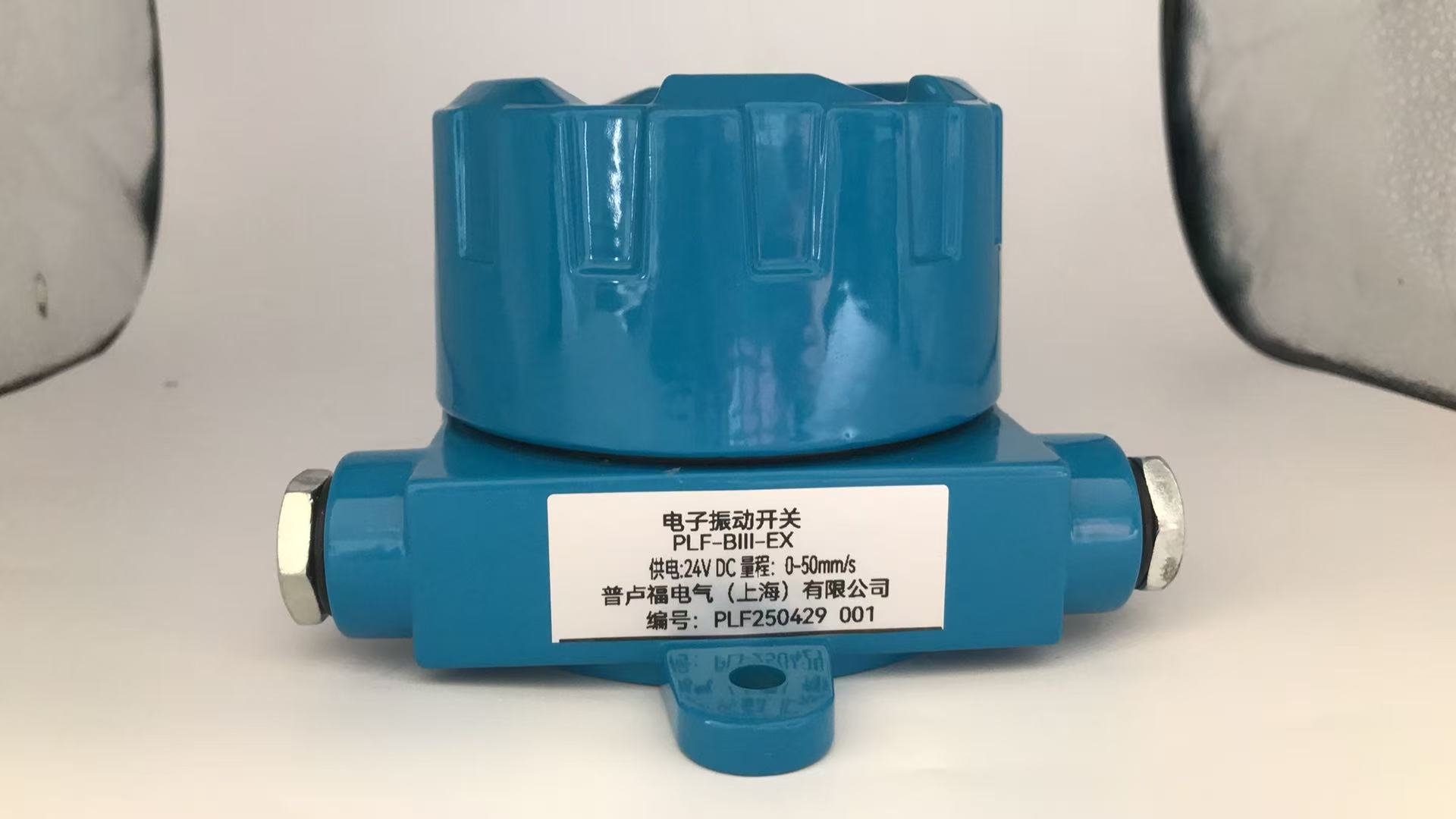

PLF-BIII-EX电子振动开关技术参数

PLF-BIII-EX电子振动开关可以连续监测离心机机器的振动。如果机器的振动超过允许值，将提供报警或关闭机器电源，保护机器不受损伤。在大多数情况下，振动可以在机器损坏前的相当长时间内体现机器的问题。例如，振动监测可以比温度监测早得多的探测出机器的可能出现的故障。PLF-BIII-EX主要监测以下主要的机器故障种类:转子不平衡、不对中、轴承损坏、皮带损坏。

PLF-BIII-EX电子振动开关技术参数

功能说明:

采用集成的专业电子电路，整个系统无机械部件。

安装简便，仅需3只螺丝固定。

继电器报警，提供常开的触点输出，可以配接PLC、DCS，现场控制继电器或者直接控制旋转机械4-20mA总振动有源输出，直接驱动显示器。

内部数码管显示，方便用户检测

防爆、环境防护，全封闭的铝外壳。

可靠性远大于机械式振动开关

电气指标

电源电压:AC220V/50Hz或DC 24V

线性误差:<2%(满量程)

量程:0~50.0mm/s

频率范围:10~1000Hz(特殊可定制)

报警范围:0~99%(满量程内任意设定)

报警延时:1~60S

继电器触点容量:2A/220VAC或1A/28VDC

电流输出:4~20mA;驱动5000的负载

物理指标:

防护等级:IP65

防爆标志:ExdIICT6

外形尺寸:140WX140 LX90Hmm

安装尺寸:116X116mm(正三角形)

安装螺纹规格:M6X14mm(螺栓)

重量:约1kg

环境指标:

温度:工作温度-25°C到+65°C，存储温度-40°C到+70°C。

相对湿度≤90%

工作压力:1.0MPa

The PLF-BIII-EX electronic vibration switch can continuously monitor the vibration of the centrifuge machine. If the vibration of the machine exceeds the allowable value, it will provide an alarm or shut off the machine power to protect the machine from damage. In most cases, the vibration can reveal the problems of the machine before it causes damage. For example, vibration monitoring can detect possible machine failures much earlier than temperature monitoring. The PLF-BIII-EX mainly monitors the following main types of machine failures: rotor imbalance, misalignment, bearing damage, and belt damage.

Technical parameters of PLF-BIII-EX electronic vibration switch

Function Description:

Using integrated professional electronic circuits, the entire system has no mechanical components.

Installation is simple; only three screws are needed for fixation.

Relay alarm provides a normally open contact output. It can be connected to PLC, DCS, for on-site control of relays or directly control rotating machinery with 4-20mA active output, and directly drive the display.

Internal digital display, facilitating user inspection

Explosion-proof and environmental protection, with a fully enclosed aluminum casing.

The reliability is much higher than that of mechanical vibration switches.

Electrical indicators

Power supply voltage: AC 220V/50Hz or DC 24V

Linear error: < 2% (full scale)

Range: 0 - 50.0 mm/s

Frequency range: 10 - 1000 Hz (customizable options available upon request)

Alarm range: 0 - 99% (can be set within the full range)

Alarm delay: 1 to 60 seconds

Relay contact capacity: 2A/220VAC or 1A/28VDC

Current output: 4 - 20mA; drives a load of 500

Physical indicators:

Protection level: IP65

Explosion-proof mark: ExdIICT6

Dimensions: 140W x 140L x 90H cm

Installation size: 116X116mm (equilateral triangle)

Installation thread specification: M6X14mm (bolt)

Weight: Approximately 1 kilogram

Environmental indicators:

Temperature: Operating temperature -25°C to +65°C, Storage temperature -40°C to +70°C.

Relative humidity ≤ 90%
